Paper 组件是 Material UI(MUI)中用于创建具有层次感阴影效果的容器组件。它模拟了物理世界中纸张的外观和感觉,通过阴影和表面属性来增强视觉层次感。Paper 组件通常用于构建卡片对话框或其他需要提升视觉效果的表面。

Paper 的核心属性有 elevationvariantsquaresx

elevation 属性

elevation:控制组件的阴影深度,取值范围为 024。数值越大,阴影越深,组件看起来越“高”

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
import { Paper, Box, Stack, styled } from "@mui/material";
import { green } from "@mui/material/colors";

const MyPaper = styled(Paper)(({ theme }) => ({
...theme.typography.body2,
display: "flex",
alignItems: "center",
justifyContent: "center",
color: theme.palette.text.secondary,
height: 60,
lineHeight: "60px",
fontSize: "3rem",
}));

function PaperDemo() {
const arr = Array.from({ length: 24 }, (_, i) => i + 1);

return (
<Stack direction="column">
<Box
sx={{
display: "flex",
flexWrap: "wrap",
"& > :not(style)": {
m: 1,
width: 120,
height: 120,
backgroundColor: green[200],
},
}}
>
{arr.map((_, index) => (
<MyPaper elevation={index}>{index}</MyPaper>
))}
</Box>
</Stack>
);
}

export default PaperDemo;

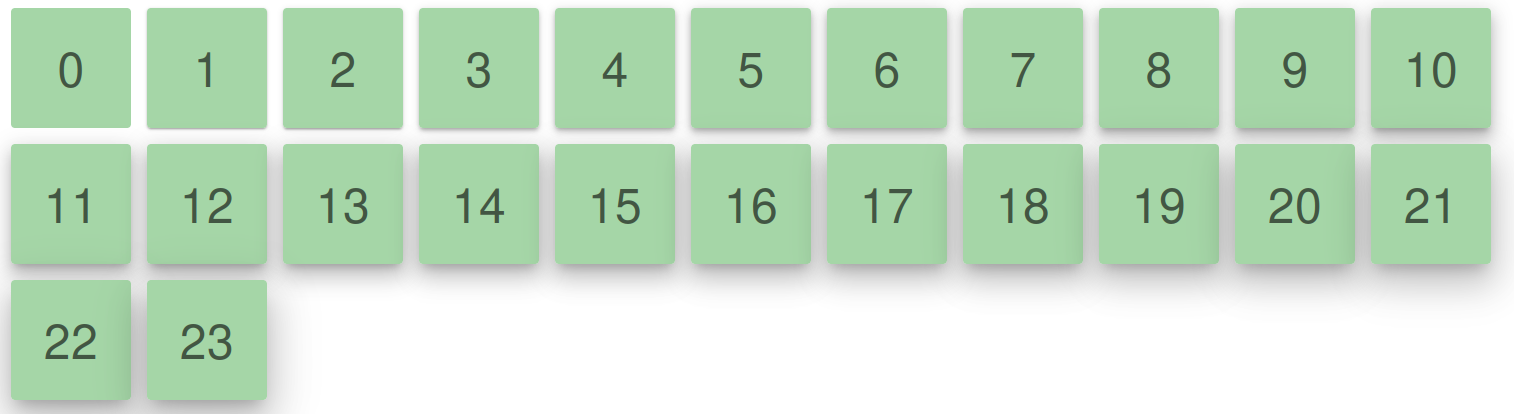

效果:

Mui Paper 组件

variant 变体

variant:定义组件的样式变体,可选值为 ‘elevation’(默认,带阴影)和 ‘outlined’(带边框,无阴影)

1
<MyPaper variant="outlined" sx={{fontSize:'1rem'}}>outlined</MyPaper>

square

square:布尔值,设置为 true 时,禁用默认的圆角样式

1
<MyPaper square variant="outlined" sx={{fontSize:'1rem'}}>square</MyPaper>

注意事项

  • 阴影层级的使用:合理使用 elevation 属性,避免过度使用高阴影层级。
  • 保持风格一致:在同一个应用中保持 Paper 组件的风格一致性。

通过以上方法,你可以轻松地在 MUI 应用中使用 Paper 组件来创建具有层次感和视觉吸引力的界面。
